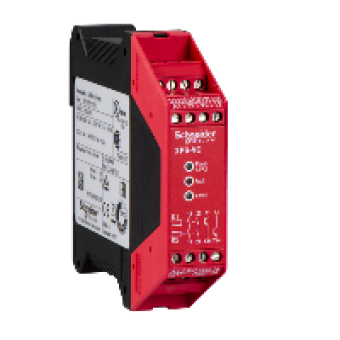

XPSVC1132 - module XPSVC - enabling switch - 24 V DC, Schneider Electric
- Product Code: XPSVC1132
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSVC
safety module application
FOR ENABLING SWITCH MONITORING
function of module
SWITCH MONITORING
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1
safety reliability data
MTTFD = 50 YEARS CONFORMING TO ENISO 13849-1
[Us] rated supply voltage
24 V DC - 20..20
output type
RELAY 2 NO VOLT-FREE
number of additional circuits
2 SOLID STATE OUTPUTS
COMPLEMETARY CHARACTERISTICS
power consumption in W
<= 2.5 W
input protection type
INTERNAL ELECTRONIC
[Uc] control circuit voltage
24 V DC
line resistance
100 OHM
breaking capacity
C300 : holding 180 VA AC-15 for relay output
breaking capacity
1.5 A / 24 V - L/R = 50 ms, DC-13 for relay output
output thermal current
4.2 A PER RELAY FOR RELAY OUTPUT
[Ith] conventional free air thermal current
<= 8.4 A
associated fuse rating
4 A GG FOR RELAY OUTPUT
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 20 MS
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III, conforming to IEC 60947-5-1
local signalling
3 LEDS
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS CLAMPING CAPACITY 1 X 0.14...1 X 2.5 MM FLEXIBLE CABLE WITHOUT CABLE END
current consumption
8 MA 24 V DC ON POWER SUPPLY
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.25 KG
