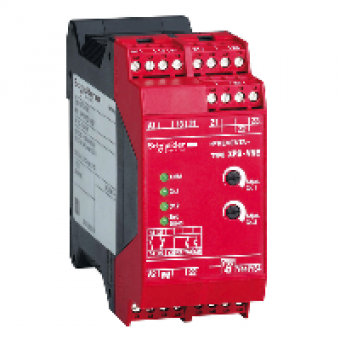

XPSVNE3442HSP - module XPSVN - zero speed detection - 115 V DC for motor power supply > 60 Hz, Schneider Electric
- Product Code: XPSVNE3442HSP
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSVNE
safety module application
FOR ZERO SPEED DETECTION
function of module
3-PH MTR W NB OF P+ST-DL STG
safety level
CAN REACH PL DCATEGORY 3 CONFORMING TO ENISO 13849-1
safety reliability data
MTTFD = 124.1 YEARS CONFORMING TO ENISO 13849-1
[Us] rated supply voltage
115 V AC - 15..15
output type
RELAY 1 NO + 1 NC VOLT-FREE
number of additional circuits
2 SOLID STATE OUTPUTS
COMPLEMETARY CHARACTERISTICS
product destination
FOR MOTOR POWER SUPPLY > 60 HZ
power consumption in VA
<= 7.5 VA
input voltage
500 VRMS
input detection threshold
0.01..0.1 V
breaking capacity
C300 : holding 180 VA AC-15 for relay output
breaking capacity
1.2 A / 24 V - L/R = 50 ms, DC-13 for NC relay output circuit
[Ith] conventional free air thermal current
<= 2.5 A FOR RELAY OUTPUT
associated fuse rating
4 A GG FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III, conforming to IEC 60947-5-1
local signalling
4 LEDS
connections - terminals
captive screw clamp terminals, removable terminal block flexible cable : 0.2...1.5 mm² without cable end, 2 wires
mounting support
35 MM SYMMETRICAL DIN RAIL
depth
114 MM
height
99 MM
width
45 MM
product weight
0.6 KG
