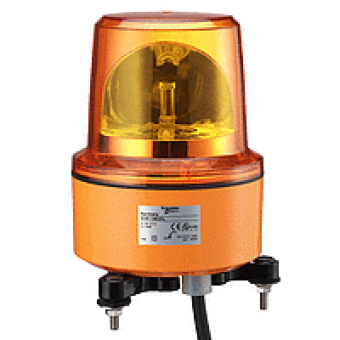

XVR13M05L - 130mm Rotating Mirror Orange 230VAC IP67, Schneider Electric
- Product Code: XVR13M05L
- Brand: Schneider Electric
- Availability: To be confirmed
- € 91.32 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XVR
product or component type
PRW RTTG MIRROR BEACON
sound signalling
WITHOUT
device short name
XVR
mounting diameter
130 MM
IP degree of protection
IP66 CONFORMING TO IEC 60529
[Us] rated supply voltage
230 V AC
light source
HIGH LUMINOSITY LED ORANGE
COMPLEMETARY CHARACTERISTICS
material
ABS ACRYLONITRILE BUTADIENE-STYRENE BODY PART
CAD overall width
130 MM
CAD overall depth
130 MM
product weight
0.99 KG
marking
CE
product mounting
BY 3 M6 SCREWS
[Uimp] rated impulse withstand voltage
4 KV
current consumption
22 MA
flashing frequency
2.7 HZ
clamping connection capacity
1.25 MM2
AWG gauge
AWG 18
cable length
400 MM
compatibility code
XVR
The Schneider Electric XVR13M05L is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
