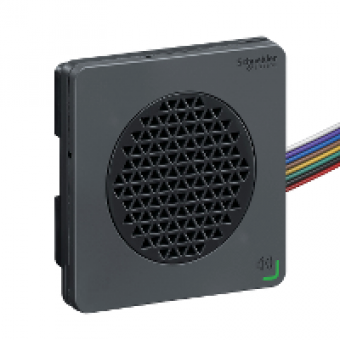

XVSV7BBN - Editable electronic alarms - DIN72 - voice - black - NPN - 12...24V DC, Schneider Electric
- Product Code: XVSV7BBN
- Brand: Schneider Electric
- Availability: To be confirmed
- € 71.82 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XVS
product or component type
EDITABLE ELECTRONIC ALARM
beacon or indicator bank unit type
SOUND UNIT
device short name
XVSV
COMPLEMETARY CHARACTERISTICS
colour
DARK GREY
input type
BIT 6 CHANNEL INPUT
assembly style
READY ASSEMBLED
material
PC POLYCARBONATE BODY
product weight
0.142 KG
marking
CE
overvoltage category
CLASS II CONFORMING TO ENIEC 61140
mounting support
72 MM DIN RAIL
[Us] rated supply voltage
12...24 V DC
[Ue] rated operational voltage
10..30 V DC
inrush current
< 30 A
associated fuse rating
1 A
[Uimp] rated impulse withstand voltage
1 KV
power consumption in W
1.8 W
current consumption
75 MA AT 24 V DC
clamping connection capacity
<= 1 X 1.5 MM2
device application
SUBWAY
mounting diameter
80 MM
width
80 MM
height
80 MM
depth
24.9 MM
compatibility code
XVS
