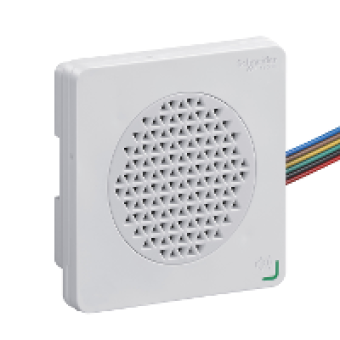

XVSV9BWN - Editable electronic alarms - DIN96 - voice - white - NPN - 12...24V DC, Schneider Electric
- Product Code: XVSV9BWN
- Brand: Schneider Electric
- Availability: To be confirmed
- € 89.15 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XVS
product or component type
EDITABLE ELECTRONIC ALARM
beacon or indicator bank unit type
SOUND UNIT
device short name
XVSV
COMPLEMETARY CHARACTERISTICS
colour
WHITE
input type
BIT 6 CHANNEL INPUT
assembly style
READY ASSEMBLED
material
PC POLYCARBONATE BODY
product weight
0.268 KG
marking
CE
overvoltage category
CLASS II CONFORMING TO ENIEC 61140
mounting support
96 MM DIN RAIL
[Us] rated supply voltage
12...24 V DC
[Ue] rated operational voltage
10..30 V DC
inrush current
< 30 A
associated fuse rating
1 A
[Uimp] rated impulse withstand voltage
1 KV
power consumption in W
3.8 W
current consumption
160 MA AT 24 V DC
clamping connection capacity
<= 1 X 1.5 MM2
device application
SUBWAY
mounting diameter
105 MM
width
105 MM
height
105 MM
depth
50.1 MM
compatibility code
XVS
