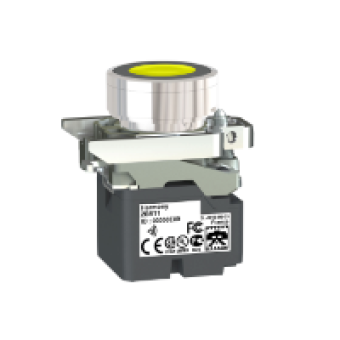

ZB4RTA5 - ZB4R transmitter complete yellow cap, Schneider Electric
- Product Code: ZB4RTA5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 40.34 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
WIRELESS+BATTERYLESS TRMTR
device short name
XB5R
bezel material
CHROMIUM PLATED METAL
fixing collar material
ZAMAK
mounting diameter
22 MM
transmission frequency
2405 MHZ
emission class
5M00G7W
antenna type
OMNIDIRECTIONAL
COMPLEMETARY CHARACTERISTICS
shape of signaling unit head
ROUND
type of operator
spring return push-button with transmitter
operator profile
flush yellow
rated power in W
<= 1 MW
number of channels
1
modulation technique
O-QPSK
bandwidth
5 MHZ
antenna gain
0 DBI
embedding depth
<= 42 MM
CAD overall height
41.5 MM
CAD overall width
30 MM
CAD overall depth
43 MM
product weight
0.045 KG
operating travel
4.3 MM TOTAL TRAVEL
operating force
< 25 N CO CHANGING ELECTRICAL STATE
mechanical robustness
FREE FALL RESISTANCE TEST LEVEL 1000 MM CONFORMING TO ENIEC 60068-2-32
standards
EN IEC 60947-1
radio agreement
ANATEL
communication port protocol
ZIGBEE GREEN POWER AT 2.4 GHZ CONFORMING TO IEEE 802.15.4
maximum sensing distance
100 M IN FREE FIELD
acquisition time
2 MS
response time
< 2 MS
emission power
3 MW
fixing mode
FIXING SCREW BENEATH HEAD RECOMMENDED TORQUE 0.8...1.2 N.M
electrical composition code
PW1
