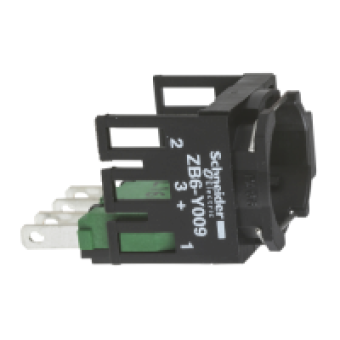

ZB6Z1B - single contact block with body/fixing collar 1NO faston connector, Schneider Electric
- Product Code: ZB6Z1B
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.48 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB6
product or component type
COMPLETE BODY FOR PBS SLTR SWT
device short name
ZB6
fixing collar material
PLASTIC
sale per indivisible quantity
1
contacts type and composition
1 NO
contact operation
SLOW-BREAK
connections - terminals
FASTON CONNECTOR
[Us] rated supply voltage
<= 250 V
COMPLEMETARY CHARACTERISTICS
CAD overall width
18 MM
CAD overall height
18 MM
CAD overall depth
40 MM
terminals description ISO n°1
13-14NO
product weight
0.004 KG
contacts usage
STANDARD
positive opening
WITH POSITIVE OPENING CONFORMING TO ENIEC 60947-5-1 APPENDIX K
operating travel
2 MM NO CHANGING ELECTRICAL STATE
operating force
1.6 N NO CHANGING ELECTRICAL STATE
contacts material
SILVER ALLOY AG NI
short-circuit protection
6 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ie] rated operational current
3 A AT 120 V AC-15 B300
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
compatibility code
ZB6
