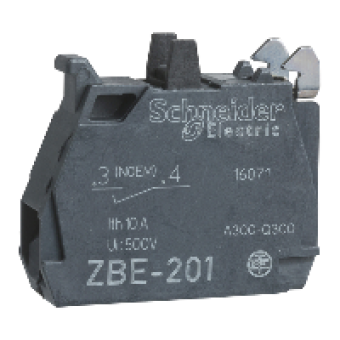

ZBE201 - single contact block for head Ø22 1NO early make screw clamp terminal, Schneider Electric
- Product Code: ZBE201
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.26 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CONTACT BLOCK
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
contacts type and composition
1 NO
contact operation
EARLY MAKE
contact block type
SINGLE
contacts usage
STAGGERED CONTACTS
connections - terminals
SCREW CLAMP TERMINALS <= 2 X 1.5 MM WITH CABLE END EN 60947-1
COMPLEMETARY CHARACTERISTICS
product weight
0.011 KG
positive opening
WITHOUT
operating travel
2.6 MM NO CHANGING ELECTRICAL STATE
operating force
2.3 N NO CHANGING ELECTRICAL STATE
mechanical durability
10000000 CYCLES
tightening torque
0.8...1.2 N.m EN 60947-1
shape of screw head
CROSS PHILIPS NO 1
contacts material
SILVER ALLOY AG NI
short-circuit protection
10 A CARTRIDGE FUSE GG ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A ENIEC 60947-5-1
[Ui] rated insulation voltage
600 V 3 EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV EN 60947-1
[Ie] rated operational current
3 A 240 V AC-15 A300 ENIEC 60947-5-1
electrical durability
1000000 cycles AC-15 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability
λ < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
mounting of block
FRONT MOUNTING
condition of use
MOUNTING ON PUSH-BUTTON COLLAR
electrical composition code
C1 <= 9
compatibility code
ZBE
