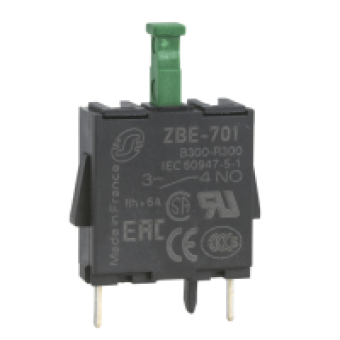

ZBE701 - single contact block for head Ø22 1NO silver alloy pins for PCB, Schneider Electric
- Product Code: ZBE701
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CONTACT BLOCK
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
contacts type and composition
1 NO
contact operation
SLOW-BREAK
contact block type
SINGLE
contacts usage
STANDARD CONTACTS
connections - terminals
PINS FOR PRINTED CIRCUIT BOARD
COMPLEMETARY CHARACTERISTICS
product weight
0.011 KG
positive opening
WITHOUT
operating travel
2.6 MM NO CHANGING ELECTRICAL STATE
operating force
2.3 N NO CHANGING ELECTRICAL STATE
mechanical durability
5000000 CYCLES
contacts material
SILVER ALLOY AG NI
short-circuit protection
4 A CARTRIDGE FUSE GG ENIEC 60947-5-1
[Ith] conventional free air thermal current
6 A ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V 3 EN 60947-1
[Uimp] rated impulse withstand voltage
4 KV EN 60947-1
[Ie] rated operational current
3 A 120 V AC-15 B300 ENIEC 60947-5-1
electrical reliability
λ < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
compatibility code
ZBE
