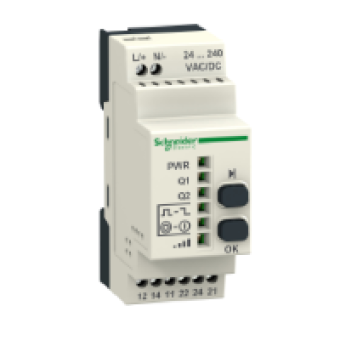

ZBRRA - Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs, Schneider Electric
- Product Code: ZBRRA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 98.26 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY
product or component type
PROGRAMMABLE RECEIVER
device short name
ZBRRA
product specific application
INTERFACE TO ACTUATORS
function of module
MONOSTABLE
reset time
2 MS TIME DELAY
transmission frequency
2405 MHZ
emission class
5M00G7W
antenna type
OMNIDIRECTIONAL
COMPLEMETARY CHARACTERISTICS
nominal output current
0.3 A AT 48 V DC FOR ENIEC 60947-5-1
output type
2 RELAYS
output contacts
2 OC
input output isolation
GALVANIC ISOLATION
time delay range
0.5 S TOLERANCE - 15..15
switching capacity in VA
1250 VA
maximum switching current
5 MA
maximum switching voltage
250 V ACDC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ - 10...10
communication port protocol
ZIGBEE GREEN POWER AT 2.4 GHZ CONFORMING TO IEEE 802.15.4
maximum sensing distance
100 M IN FREE FIELD
response time
< 30 MS AFTER TRANSMITTER CLICKS
channels utilisation
<= 32 PER RECEIVER
utilisation category
AC-15 B300 CONFORMING TO ENIEC 60947-5-1
power consumption in W
<= 4 W
breaking capacity
15 W
breaking capacity
750 VA
control circuit frequency
50..60 HZ + - 10 PT
short-circuit protection
0.4 A FUSE FAST BLOW
operating position
ANY POSITION WITHOUT DERATING
electrical connection
1 CONDUCTOR CABLE 0.14...2.5 MM - AWG 26...AWG 14 - SOLID - WITHOUT CABLE END CONFORMING TO IEC 60947-1
tightening torque
0.5...1 N.M CONFORMING TO ENIEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
1 LED COLOR GREEN FOR POWER ON
rated short-duration power frequency withstand voltage
1.5 KV 50 HZ CONFORMING TO ENIEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 KV
surge withstand
1 KV DIFFERENTIAL MODE CONFORMING TO IEC 61000-4-5
rated power in W
<= 1 MW
number of channels
1
modulation technique
O-QPSK
bandwidth
5 MHZ
antenna gain
0 DBI
width
36 MM
height
108 MM
depth
75 MM
product weight
0.13 KG
