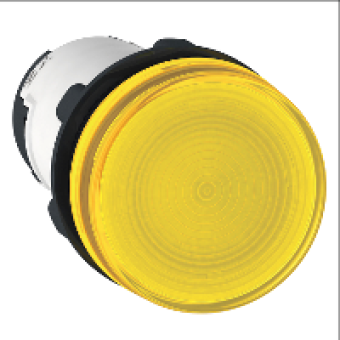

XB7EV65P - round pilot light Ø 22 - yellow - BA 9s - <= 250 V - screw clamp terminals, Schneider Electric
- Product Code: XB7EV65P
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.16 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB7
product or component type
MONOLITHIC PILOT LIGHT
device short name
XB7
mounting diameter
22 MM
sale per indivisible quantity
10
shape of signaling unit head
ROUND
cap/operator or lens colour
YELLOW
light source
INCANDESCENT BULB NOT ICLD
bulb base
BA 9S
light block supply
DIRECT
[Us] rated supply voltage
<= 250 V
COMPLEMETARY CHARACTERISTICS
height
29 MM
width
29 MM
depth
54 MM
terminals description ISO n°1
X1-X2PL
product weight
0.018 KG
device mounting
FIXING HOLE 22.5 MM 22.3 +0.40 CONFORMING TO ENIEC 60947-5-1
fixing center
>= 30 X 40 MM ON SUPPORT PANEL METAL THICKNESS 1...6 MM
fixing mode
FIXING NUT BENEATH HEAD RECOMMENDED TORQUE 2...2.4 N.M
connections - terminals
FASTON CONNECTORS 6.35 X 0.8 MM CONFORMING TO ENIEC 60947-1
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH JIS NO 1 SCREWDRIVER
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
signalling type
STEADY
compatibility code
XB7
The Schneider Electric XB7EV65P is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
